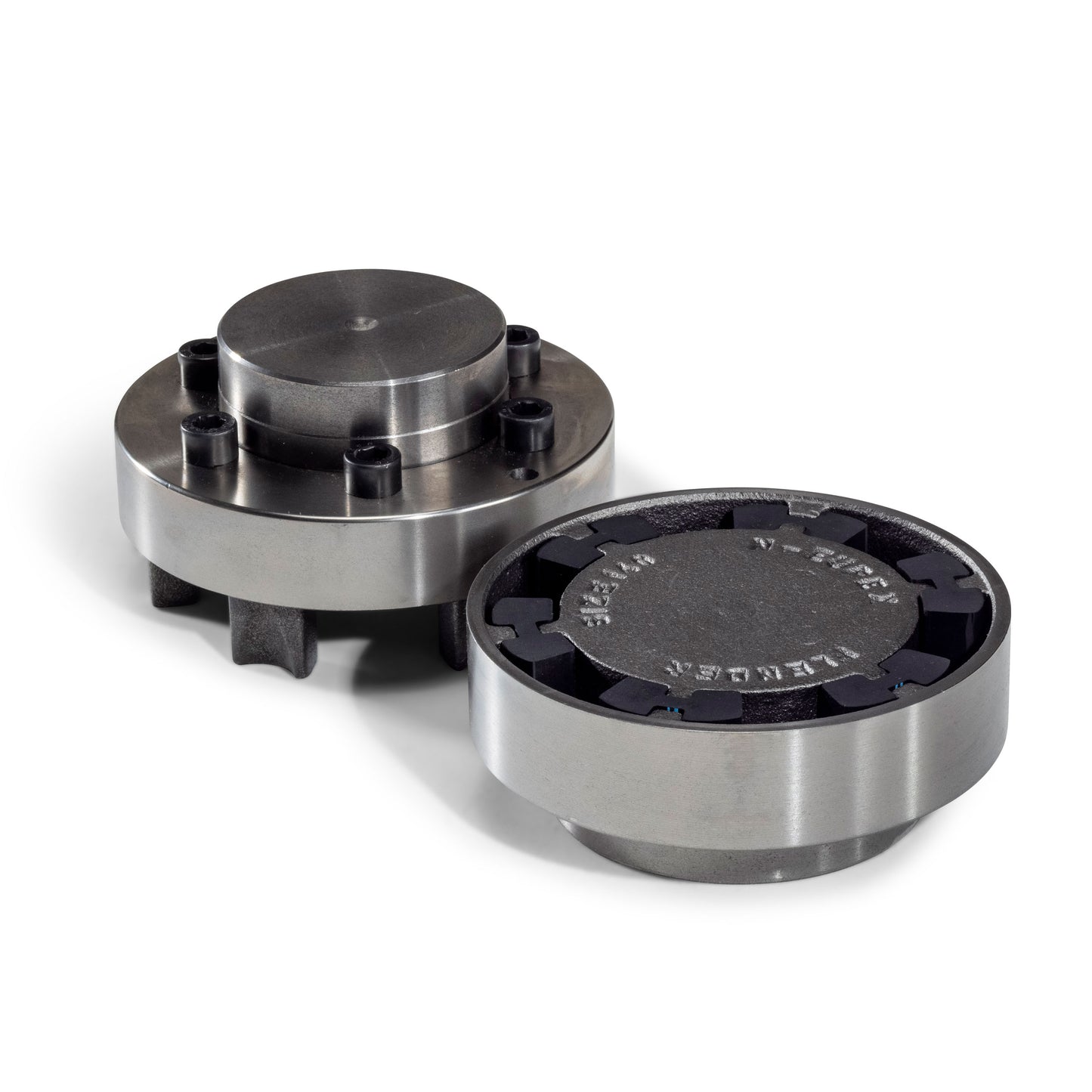

N-EUPEX A 140
N-EUPEX A 140
- Series: N-EUPEX FLE10.2
- Scope of supply: Complete coupling, unbored / pilot bored
- Please note that a bore is required to install the coupling.
Couldn't load pickup availability
About N-EUPEX Pin Coupling
Due to their torsional flexibility N-EUPEX couplings offer the possibility of moving critical torsional vibrations from the operating area of the mechanical equipment in such a way that no negative effects on the drive train are to be expected. N-EUPEX couplings are made of high-quality cast iron. The flexible elements made of synthetic rubber (buna N) are available in different degrees of hardness for many applications. Metal pins and flexible elements are so designed that no wear occurs when properly fitted.
Application field
Widespread use in all mechanical engineering, both on the motor side as a high-speed coupling, e.g. pump, fan or compressor applications as well as at high torques for connecting gear units and driven equipment, e.g. mills.
Advantages of the product
- Torsionally rigid and damping pin coupling to be used universally for compensating shaft misalignments
- Maximum operational reliability, since fail-safe
- Suitable for plug-in assembly and simplified replacement of elements in the type consisting of three parts
- Dynamic adaptation by selection of elastomer hardness
N-EUPEX A 140 Detailed information
| Product | ||
| Series | N-EUPEX FLE10.2 | |
| Type | A | |
| Size | 140 | |
| Scope of supply | Complete coupling | |
| Torsional stiffness | Torsionally flexible | |
| Basic data 1) | ||
| Rated coupling torque | TKN | 500 Nm |
| Maximum coupling torque | TKmax | 1750 Nm |
| Maximum coupling speed | nKmax | 5800 rpm |
| Operating temperature (min.) | Tmin | -30 °C |
| Operating temperature (max.) | Tmax | 80 °C |
| Axial misalignment (max.)2) | Ka | ± 1 mm |
| Radial misalignment 3) | Kr | 0.25 mm |
| Angular misalignment (max.)3) | Kw | 0.1 ° |
| Torsional stiffness, dynamic 4) | CTdyn | 18.0 kNm/rad |
| Proportionate damping | Ψ | 1.4 |
| Connection 1 part 1 5) | ||
| Hub length | 55 mm | |
| Hub diameter | 100 mm | |
| Connection 2 part 2 5) | ||
| Hub length | 55 mm | |
| Hub diameter | 82 mm | |
| Product-specific options | ||
| Elastomer | Packs NBR 80 Shore A | |
| Balance state | ||
| Balancing quality | G 16 | |
| Speed | 1500 rpm | |
| Method | Component balance | |
| Corrosion protection | ||
| Preservation | Cleaning emulsion - indoor storage up to 3 months | |
Note
1) The formula symbols are defined here.
2) The permissible axial offset is applicable for offsets that slowly occur, e.g. as a result of thermal expansion of the coupled shaft.
3) Permissible shaft offset at rated speed 1500 rpm.
4) Torsional stiffness at 0.5 * TKN, excitation amplitude of 0.1 * TKN with 10 Hz, ambient temperature 20°C.
5) The orderer is responsible for verifying the design strength of the shaft-hub connection.
Subject to change without prior notice. Differences between data sheet and type plate may occur.
